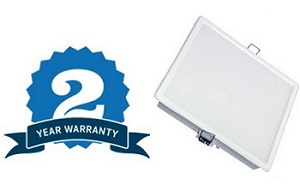

12 Watt Down Light

MODEL NO
  • Round:NT-DL-12R
  • Square:NT-DL-12S
MECHNICAL PARAMETERS
  • Outer Diameter:120MM(Round),
    120X120MM(Square)
  • Cutout Diameter:105MM(Round),
    105X105MM(Square)
MATERIAL PROPERTIES
  • Body Material:Polycaronate
  • Body Colour:White
  • Diffuser Transpency:>=80%
  • Screw Material:SS
  • Spring Material:Nickle Plated Spring Steel
ELECTRICAL PARAMETERS
  • Power:12Watt
  • Input Voltage:90-270VAC
  • Power Factor:>=0.95
  • THD:<=10%
  • Lumens Output:>=1100km
  • Surge:2.5 KV
  • Protection:No Load, Short Circuit
LED PARAMETERS
  • LED Efficiency:125 Im/Watt
  • CCT:3000K/4000K/5700K/6500K
  • CRI:>=80
  • LED Type:Mid Power
  • Led Make:Everlight/Bridgelux/Samsung
APPLICATION
  • • Residentials
  • • Shops
  • • Showrooms
  • • Offices
  • • Corridors
  • • Utility Areas
  • • Hospitals
SILENT FEATURES
  • • Higher Lumens Output
  • • Low Power Consumption
  • • Higher CRI
  • • Slim and Elegant
  • • Bis Approved Control Gear
